Shredder Cum Pulverizer

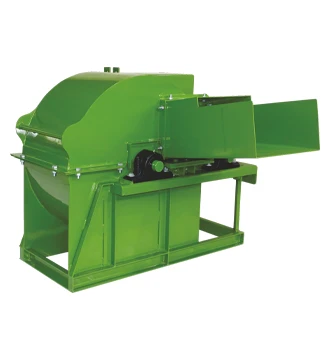

Model : GSP 45S 42

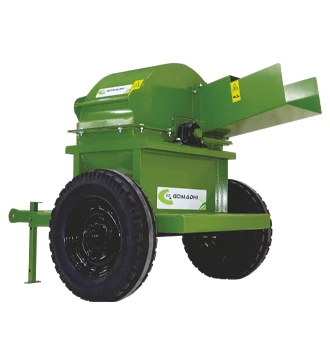

Model : GSP 45 T 60

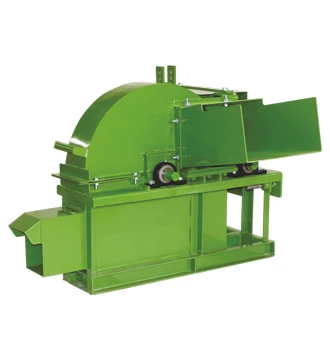

Model : GMS 15S
Gallery
Advantage
- Easy handy of material
- Chopped coconut fronds used for bio fertilizer
- Environment friendly
Application

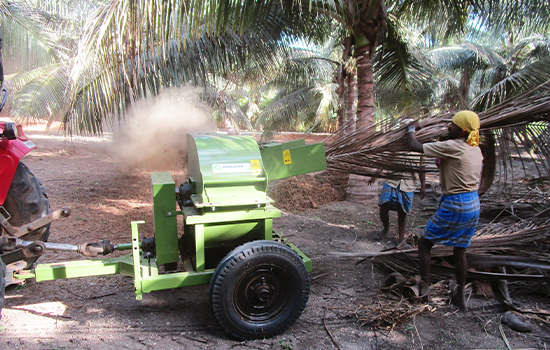

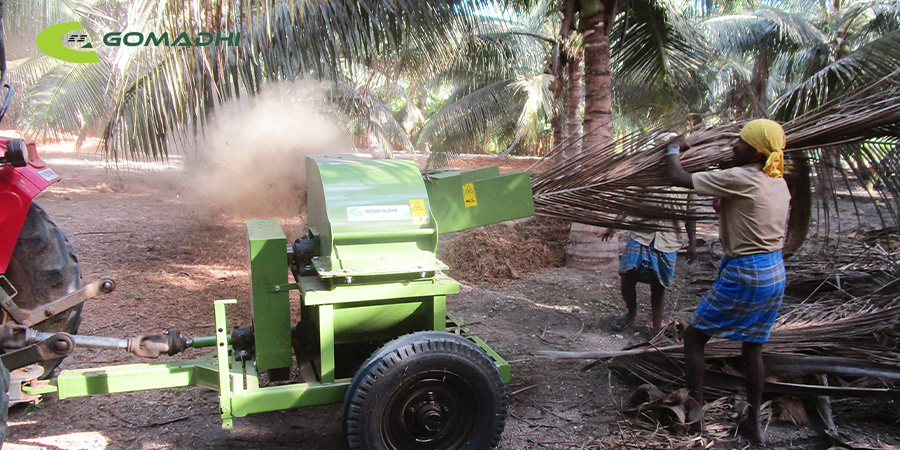

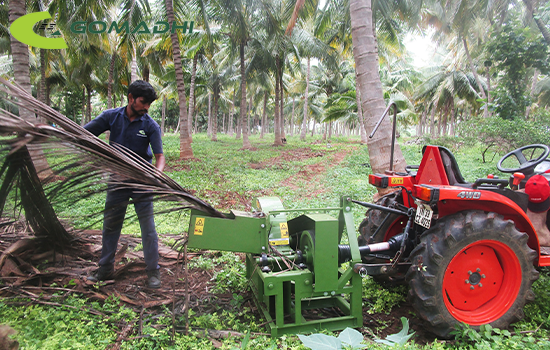

- Gomadhi Shredder cum pulveriser machine is used for shredding the agricultural residue like coconut fronds, banana stem, cotton stalk etc.
Technical Specification
| Make | Gomathi | |||
|---|---|---|---|---|
| Model | GSP 45 S 42 | GSP 45 S 60 | GSP 45 T 42 | GSP 45 T 60 |
| Type | Tractor PTO operated Shredder Cum Pulverizer/Coconut frond chopper | |||
| Hitching/Attachment | CAT-II 3Point Linkage | Trolley Type | ||
| Over all Dimensions in mm(LxWxH) | 1760 x 1350 x 1070 | 2500 x 1450 x 1430 | ||
| Tractor Power(HP) | 45 HP & Above | |||
| Output(per Hour)in Kg | 3800 to 4500 | |||
| Weight(in Kg) | 630 Kgs | 650 Kgs | 770 Kgs | 790 Kgs |
| No.of shredder blade(Movable/Fixed) | 6 no's/1no | |||
| Size of blade(LxWxT)in mm | 350 x 100 x 12 | |||
| No.of Pulverizer Blade | 42 no's | 60 no's | 42 no's | 60 no's |
| Size of blade(LxWxT)in mm | 175 x 50 x 10 | |||
| PTO Input Speed(rpm) | 540 RPM(max) | |||
| Transmission Drive | BELT | |||
| No.of Belt | 3 no's | |||
| Feeding Chute(LxWxH)in mm | 730 x 470 x 300 | |||
| Cutting Disc Thickness in mm | 22 mm | |||
| Recommended Output(RPM) | 1920(max) | |||
| Make | Gomathi | |
|---|---|---|
| Model | GMS 15 S | GMS 15 S 30 |
| Type | Tractor PTO operated Mini Shredder /Coconut frond chopper | Tractor PTO operated Mini Shredder Cum Pulverizer/Coconut frond chopper |
| Hitching | CAT-I 3Point Linkage | |
| Over all Dimensions in mm(LxWxH) | 1330 x 1090 x 865 | 1700 x 1150 x 900 |
| Tractor Power(HP) | 15 HP & Above | |
| Output(per Hour)in Kg | 1600 to 2000 | 2000 to 2300 |
| Weight(in Kg) | 265Kgs 365Kgs | |
| No.of shredder blade(Movable/Fixed) | 6 no's/1no | |
| Size of blade(LxWxT)in mm | 285 x 80 x 12 | |
| No.of Pulverizer blade | NA | 30 no's |
| Size of blade(LxWxT)in mm | 150 x 50 x 10 | |
| PTO Input speed(rpm) | 540 RPM(max) | |
| Transmission Drive | BELT | |
| No.of Belt | 3 no's | |
| Feeding chute(LxWxH)in mm | 530 x 370 x 250 | |
| Cutting Disc Thickness in mm | 20 mm | |
| Recommended output(RPM) | 1600(max) | 1920(max) |
