Grain Collector

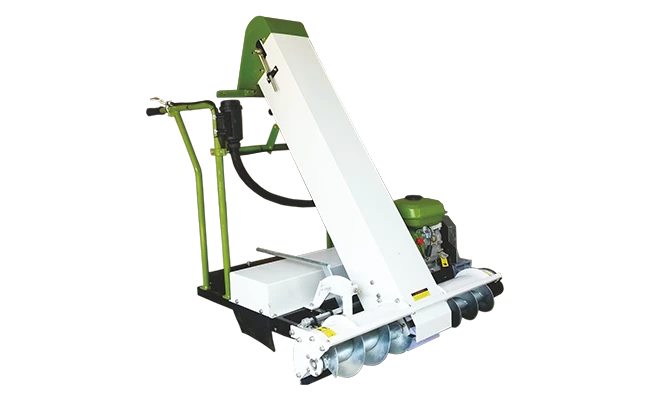

Grain Collector machine is specially designed for collecting the grain, pulses and cereals to the bags. It can be used by small farmers, rice mill & coffee factories. The working efficiency is 95% i.e., 4 - 5tons/hr. One person is easily to handle it.
Engine
3Hp, Ren Petrol Engine
120cc, 4 Stroke Engine.
Height control lever use to control the height of auger assembly from ground for effective collection
Remote Air Filter
Air Filter provided top of the handles,use to prevents dirt to get inside the engine
Auger Assembly collects the grains from both side and feed it to the conveyor belt
Engine Speed Control Lever use to control engine rpm and also engage centrifugal clutch by increasing RPM
Belt Tension Adujster
Can adjust the tension of collection belt from out side the conveyor
Features
- Multipurpose Machine: suitable for Paddy, rice, rice husk, wheat, maize, groundnut, coffee, and other cereals & Beans.
- Easy to operate - nudge straight, automatic collection, ascending & bagging.
- It can bag automatic, fast and lightweight.
- High efficiency: Filling quantity can reach 4-5 tons per hour.
Technical Specification
| Model | Type | Dimension in mm/feet (L X W X H) | Engine | Fuel Efficiency L/hr | Productivity | Maximum Capacity Kg/Bag | Clutch Type | Drive System | Weight kg | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Total Displacement CC | Tank Capacity L | Applicable Fuel | Ignition System | Starting System | Rated Power | |||||||||
| GCP390 | Walk Behind | 1365 x 1070 x 1400/ 4.5 x 3.5 x 4.6 |
PX 120 | 120 | 3 | Unleaded gasoline for automobile | TCI Transistorized Ignition | Manual Rewind Starter | 2.2Kw | 0.8-1.0 | 4-5 Tones/Hr | 70-80 | Centrifugal Clutch | Belt& GearBoxType | 115 |
